Description
| CODE | Rod | Safe Working Load (4:1 Factor of Safety) Tensile / 1 Rod kN |
Max Inclination | Rotation | Tightening Torque Nm |
Dimensions (mm) U x R x Width V |
|---|---|---|---|---|---|---|
| SW10 | M10 | 2.4 | 18° | 360° | 11 | 45 x 25 x 35 |

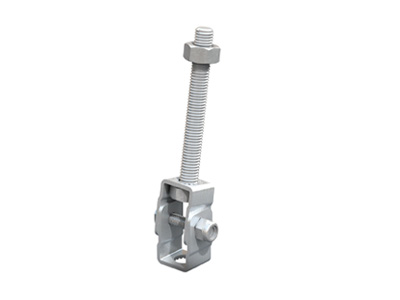

• Swivel unit for applications on inclined
beams. Can be used with Type FL or Type
Z10.
• Supplied complete with a Grade 8.8 M10 x
90 set screw and nut.
