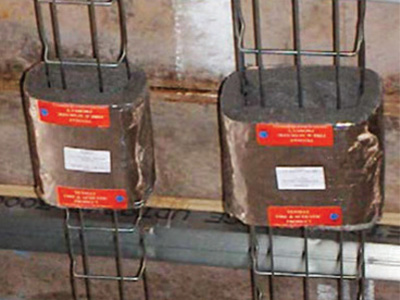

Cable Basket / Cable Tray Fire Sleeves

SKU: 7e0a0370ce60 Category:

Description

The FIREFLY 108 Cable Basket Fire Sleeves are a unique range of products designed to speed up and simplify the firestopping of cable trays and cable baskets.The compressible and fully intumescent material provides an effective fire and acoustic seal around both the cable and cable tray / basket itself.The Cable Basket Fire Sleeves are supplied in a standard length to suit all common wall construction.The ready to install design does not require any additional metal work, support, fire rated sealants or foams.

Product Features and Benefits:

  • 2 hour fire rated.
  • Acoustically rated.
  • Simple and quick to install.
  • No metal sleeving required.
  • Sleeve can be fitted prior to running cables.
  • No mastic, screws or supports required.
  • Available to fit all common cable tray and basket.

Suitable Wall and Floor Construction:

Plasterboard Partition, Concrete, Blockwork or Brick Walls and Floors.

Suitable for use with:

Wire Mesh Cable Basket 60mm and 35mm deep -50mm to 450mm wide.

Cable Tray Light, Medium and Heavy – 50mm to 450mm wide.

Fire Testing:

  • The Fire Sleeves were tested to BS 476: Part 20.
  • Duration of effective protection: 120 minutes.
  • Assessment No: Chilt/03187 Rev D / Chiltern Int. Fire.

Acoustic Testing:

  • The Cable Basket Sleeves were acoustically tested in a plasterboard partition system under UKAS conditions in accordance with BS EN ISO 140-3:1995 and BS EN ISO 717-1.148472222.
  • Test Report No: 239037.
CODE Description Box Qty.
PFPCBS050 50 x 54/30mm Cable Basket Fire Sleeve 6
PFPCBS075 75 x 54/30mm Cable Basket Fire Sleeve 6
PFPCBS100 100 x 54/30mm Cable Basket Fire Sleeve 6
PFPCBS150 150 x 54/30mm Cable Basket Fire Sleeve 6
PFPCBS200 200 x 54/30mm Cable Basket Fire Sleeve 6
PFPCBS250 250 x 54/30mm Cable Basket Fire Sleeve 3
PFPCBS300 300 x 54/30mm Cable Basket Fire Sleeve 3
PFPCBS350 350 x 54/30mm Cable Basket Fire Sleeve 3
PFPCBS400 400 x 54/30mm Cable Basket Fire Sleeve 3
PFPCBS450 450 x 54/30mm Cable Basket Fire Sleeve 3
PFPCBSINFILL Cable Basket Infill Material 180mm x 1M 5
