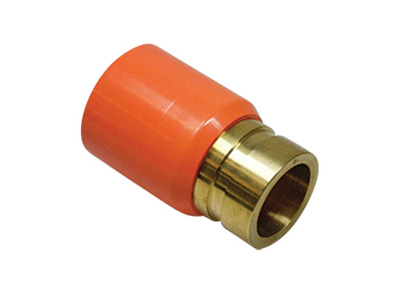

CPVC Coupling Adapter
Description
• Coupling Adapter, Slip x Groove
CODE | Size | A mm | G mm | H mm | T/O mm | Kg | ||||
Nom. | B mm | C mm | ||||||||
DN | ||||||||||
80160 | 32 | 11/4” | 32 | 42.2 | 52 | 93 | 34 | 59 | 0.354 | LPCB, FM, UL, VdS |
80161 | 40 | 11/2” | 40 | 48.3 | 59 | 95 | 37 | 58 | 0.431 | LPCB, FM, UL, VdS |
80162 | 50 | 2” | 50 | 60.3 | 72 | 98 | 40 | 58 | 0.644 | LPCB, FM, UL, VdS |
80163 | 65 | 21/2” | 65 | 73.0 | 87 | 107 | 49 | 58 | 1.034 | LPCB, FM, UL |
80169 | 65 | 21/2” | 65 | 76.1 | 91 | 107 | 49 | 58 | 1.155 | LPCB, FM, UL |
80164 | 80 | 3” | 80 | 88.9 | 105 | 110 | 52 | 58 | 1.361 | FM, UL |
