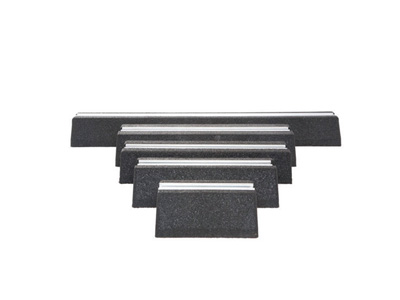

FX Support Feet – Low level containment supports
Description
The FX range is a practical and versatile support solution for pipework and cable trays. They can also be used for smaller outdoor condensing units or air source heat pump installations. The feet have a 41mm x 21mm pre-galvanised channel recessed into the top face allowing you to use standard strut fixings to secure your services to the feet.
Our FX range of products are made from recycled SBR rubber, making them eco-friendly. They also have the added advantage of vibration noise absorption which makes them the ideal product for roof or ground level installations.
Material Specification
The rubber is milled, sieved and graded styrene butadiene rubber (black SBR) in reclaimed truck/ lorry tyre shred and granular form. Bound together using a 8% ratio of moisture curing polyurethane pre-polymer UV resistant recycled rubber.
Working Conditions
Range: -35°c to +80°c
| CODE | Description | Max Load Per Foot KG’S | Height
MM A |
Width
MM B |
Length
MM C |
Weight Per Foot KG’S |
| RTSFX250 | FX 250 + Channel 95H x 180W x 250L | 160 | 95 | 180 | 250 | 2.5 |
| RTSFX400 | FX 400 + Channel 95H x 180W x 400L | 240 | 95 | 180 | 400 | 4.5 |
| RTSFX500 | FX 500 + Channel 95H x 180W x 500L | 400 | 95 | 180 | 500 | 4.75 |
| RTSFX500H | FX 500 High @150 + Channel 150H x 160W x 530L | 400 | 150 | 160 | 530 | 9 |
| RTSFX600 | FX 600 + Channel 95H x 180W x 600L | 450 | 95 | 180 | 600 | 8.15 |
| RTSFX600H | FX 600 High @200 + Channel 200H x 230W x 610L | 450 | 200 | 230 | 610 | 18.2 |
| RTSFX1000 | FX 1m + Channel 95H x 180W x 1000L | 645 | 95 | 180 | 1000 | 12.2 |
| RTSFX250L | FX 250 Low + Channel 50H x 180W x 250L | 160 | 50 | 130 | 250 | 1.5 |
| RTSFX400L | FX 400 Low + Channel 50H x 180W x 400L | 240 | 50 | 130 | 400 | 2.46 |
