Intumescent Fire Pillows

SKU: b5f01b68b787 Category:

Description

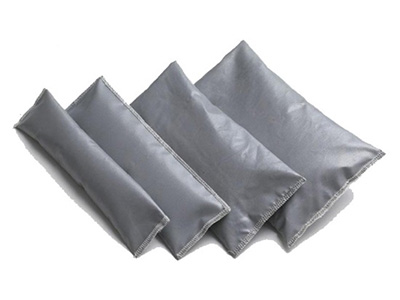

Intumescent Pillows will provide up to 4 hours fire protection to metal services and cables passing through compartment floors and walls. The pillows are simply packed tightly in between penetrating services and the wall. In a floor pillows are additionally supported by means of a mesh support system. Under fire conditions the pillows expand several times their original volume to form an effective seal around service penetrations.

Pillows are suitable for use with:

  • Metal pipework.
  • Cable trays.
  • Electrical trunking (inside and outside).
  • Product Features and Benefits.
  • Simple to install.
  • Easy to remove and reinstate whilst changing services.
  • Maintenance free.
  • Dry system.
  • 3rd party certified.

Suitable Wall and Floor Construction:

Concrete, blockwork or brick walls and floors.

Suitable for use with:

Steel Tube, Cable Tray, Trunking and Basket.

CODEDescriptionBox Qty.
PFPFP05035 x 50 x 300mm Fire Pillows50
PFPFP10035 x 100 x 300mm Fire Pillows40
PFPFP15035 x 150 x 300mm Fire Pillows40
PFPFP20035 x 200 x 300mm Fire Pillows30
