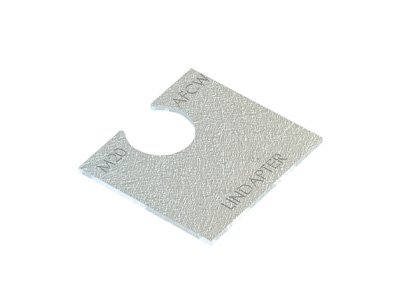

Lindapter AF Packing Shims
Description
A packing used to adjust the tail length of the clamp to meet differing beam flange
thicknesses; it has a slight bend along its centre line which flattens out during
installation.
CODE | Bolt Z | Dimensions | |||
---|---|---|---|---|---|
Y (mm) | X (mm) | T (mm) | Width (mm) | ||
AF12CW | M12 | 6 | 33 | 2 | 40 |
AF16CW | M16 | 8 | 40 | 2 | 50 |
AF20CW | M20 | 10 | 40.5 | 2 | 55 |
