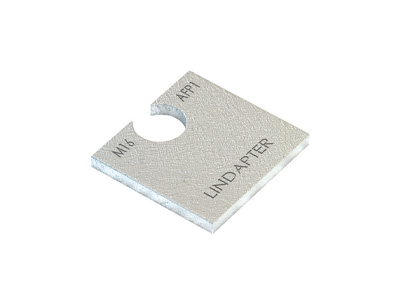

Lindapter AFP1 & AFP2 Packing Shims
Description
A packing used to adjust the tail length of the clamp
to meet differing beam flange thicknesses.
| CODE | Bolt Z | Dimensions | |||||
|---|---|---|---|---|---|---|---|
| (P1) | (P2) | Y (mm) |
X (mm) |
(P1)T (mm) |
(P2)T (mm) |
Width (mm) |
|
| AF12P1 | AF12P2 | M12 | 6 | 33 | 5 | 10 | 40 |
| AF16P1 | AF16P2 | M16 | 8 | 42 | 5 | 10 | 52 |
| AF20P1 | AF20P2 | M20 | 10 | 45.5 | 5 | 10 | 56 |
| AF24P1 | AF24P2 | M24 | 12 | 73 | 5 | 10 | 3585 |
