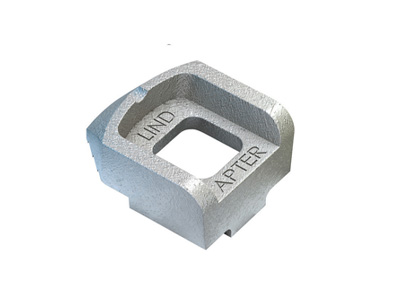

Lindapter Type A
Description
The recessed top of the Type A clamp holds the bolt head captive while the nut is tightened.
The skirt prevents the clamp rotating during installation. The clamp is suitable for parallel
flanges and tapered flanges up to 8°. It is installed correctly when the clamping area grips
the flange. The tail must be chosen to suit the thickness of the flange being gripped.
| CODE | Bolt 8.8 Z | Safe Working Load (5.1 Factor of Safety) | Tightening Torque Nm | Dimensions | Tail Length V | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tensile / 1 Bolt kN | Frictional / 2 Bolts kN | Y (mm) | X (mm) | Short (mm) | Medium (mm) | Long (mm) | T (mm) | Width (mm) | |||
| A08 | M8 | 1.0 | 6 | 16 | 8 | 4 | 4 | 20 | |||
| A10 | M10 | 1.5 | 20 | 20 | 11 | 4 | 5 | 7 | 5 | 26 | |
| A12 | M12 | 5.8 | 0.7 | 69 | 26 | 13 | 4.5 | 6 | 9.5 | 6 | 29 |
| A16 | M16 | 7.3 | 1.5 | 147 | 30 | 16 | 5.5 | 8 | 11 | 8 | 36 |
| A20 | M20 | 14.7 | 3 | 385 | 36 | 19 | 7 | 10 | 12.5 | 10 | 46 |
| A24 | M24 | 19.7 | 4.5 | 491 | 48 | 25 | 9 | 12 | 16 | 12 | 55 |
