Lindapter Type AAF
Description

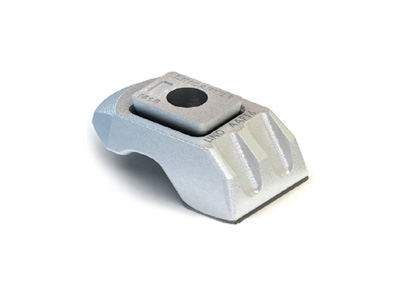

Lindapter’s flagship product features an innovative 2-part design that allows the clamp to self-adjust to
suit a range of flange thicknesses, while the low temperature SG iron provides resistance in cold environments
where impact strength is important. This ‘Adjustable AF’ is an enhanced version of Lindapter’s Type AF product
and maintains the same safe working load capacities, but is faster to install due to an impressive clamping range
of 6-30mm (size M16).
| CODE | Bolt | Safe Working Load (5.1 Factor of Safety) | (F.O.S 2:1) Slip Resistance/ 2 Bolts | Tightening Torque Nm | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Property Class | Tensile / 1 Bolt (F.O.S 4.5:1) kN | Painted Steelwork kN | Galv. Steelwork kN | V Clamping Range (mm) | Y (mm) | X (mm) | U (mm) | Width (mm) | ||
| AFF12 | M12 | 8.8 | 8.5 | 3.4 | 3.9 | 90 | 5 – 26 | 24 – 34 | 27 – 49 | 26 – 42 | 41 |
| AFF16 | M16 | 8.8 | 16.0 | 8.0 | 10.0 | 240 | 34 – 50 | 34 – 50 | 31 – 58 | 35 – 46 | 56 |
| AFF12 | M12 | 10.9 | 10.0 | 4.0 | 5.02 | 130 (100) | 25 – 34 | 25 – 34 | 27 – 49 | 26 – 42 | 41 |
| AFF16 | M16 | 10.9 | 19.5 | 11.0 | 12.0 | 300 (250) | 34 – 50 | 34 – 50 | 31 – 58 | 35 – 46 | 56 |
