Lindapter Type FL – Flange Clamp
Description

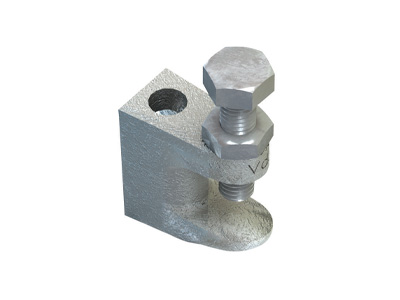

A flange clamp suitable for use with parallel or tapered flange beams, supplied with the rear hole drilled or tapped.
The Type FL uses a hexagon head, high tensile cup point setscrew for secure grip.
Can be used with Type SW- Swivel Unit when connecting to inclined sections.
| CODE | Safe Working Load | Tightening Torque | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Clear | Tapped | Clear Hole ø Y (mm) | Tapped Thread Y | (4:1 Factor of Safety) Tensile kN | Clamping Thickness W (mm) | Setscrew Z | Setscrew Z Nm | Lock-nut N Nm | T (mm) | U (mm) | X (mm) | Width V (mm) |
| FL106D | FL106T | 7 | M6 | 1.1 | 3 – 17 | M8 | 8 | 11 | 36 | 35 | 20 | 19 |
| FL108D | FL108T | 9 | M8 | 1.1 | 3 – 17 | M8 | 8 | 11 | 36 | 35 | 20 | 19 |
| FL210D | FL210T | 11 | M10 | 2.4 | 3 – 19 | M10 | 8 | 22 | 45 | 40 | 22 | 22 |
| FL312D | FL312T | 13 | M12 | 3.1 | 3 – 23 | M10 | 8 | 22 | 50 | 46 | 28 | 25 |
| FL412D | FL410T | 13 | M10 | 3.1 | 3 – 28 | M10 | 8 | 22 | 53 | 51 | 27 | 26 |
