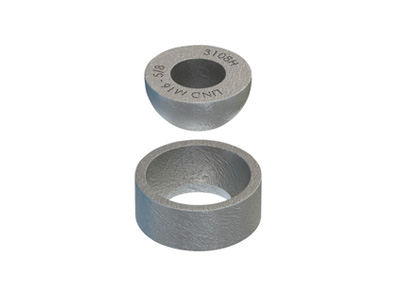

Lindapter Type HC / HW – Hemispherical Cup & Washer
Description
For vertical suspension on angled surface of up to 10° swing either side of the vertical.
The hemispherical washer (HW) can be used without the cup. Loads are subject to applications.
| CODE | Hemisherical Washer Dimensions | Hemispherical Cup Dimensions | Hemispherical Washer & Cup Dimensions | |||||
|---|---|---|---|---|---|---|---|---|
| Hemispherical Washer | Hemisperical Cup | ROD Z | X (mm) | W1 (mm) | Y (mm) | W2 (mm) | R (mm) | L (mm) |
| HW08 | M8 | 22 | 10 | |||||
| HW10 | HC10 | M10 | 25 | 12 | 32 | 12 | 13 | 14 |
| HW12 | HC12 | M12 | 29 | 12 | 35 | 12 | 14 | 16 |
| HW16 | HC16 | M16 | 34 | 16 | 41 | 16 | 17 | 19 |
| HW20 | HC20 | M20 | 44 | 19 | 54 | 19 | 22 | 24 |
| HW24 | HC24 | M24 | 57 | 25 | 67 | 25 | 29 | 32 |
