Pipe Clamp
Description

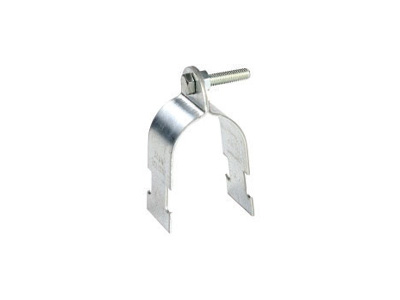

M11 Pipe Clamp
| CODE | D (mm) | Size (mm) |
|---|---|---|
| M1108 | 8.7 – 10.3 | 9.5 |
| M1109 | 10.3 – 12.7 | 11 |
| M1110 | 11.9 – 13.5 | 12.5 |
| M1111 | 13.5 – 14.3 | 14 |
| M1112 | 14.3 – 16.7 | 15 |
| M1113 | 15.9 – 18.3 | 17 |
| M1114 | 18.3 – 20.6 | 19 |
| M1115 | 19.0 – 21.4 | 20 |
| M1116 | 21.4 – 25.4 | 23 |
| M1117 | 25.4 – 27.8 | 26.5 |
| M1118 | 27.0 – 30.2 | 28.5 |
| M1119 | 30.2 – 33.8 | 32 |
| M1120 | 31.8 – 35.9 | 34 |
| M1121 | 34.9 – 39.7 | 37 |
| M1122 | 39.7 – 42.9 | 41 |
| M1123 | 42.9 – 46.8 | 44 |
| M1124 | 46.8 – 50.8 | 48 |
| M1125 | 48.4 – 52.4 | 50 |
| M1126 | 52.4 – 58.7 | 54 |
| M1127 | 58.7 – 63.5 | 61 |
| M1128 | 63.5 – 68.3 | 66 |
| M1129 | 68.3 – 73.0 | 70 |
| M1130 | 73.0 – 79.4 | 76 |
| M1131 | 76.2 – 82.6 | 79 |
| M1132 | 82.6 – 88.1 | 85 |
| M1133 | 88.1 – 95.2 | 90 |
| M1134 | 95.2 – 100.0 | 97 |
| M1135 | 100.0 – 106.4 | 102 |
| M1136 | 106.4 – 111.1 | 109 |
| M1137 | 111.1 – 120.7 | 115 |
| M1138 | 120.7 – 129.4 | 125 |
| M1139 | 129.4 – 138.1 | 133 |
| M1140 | 138.1 – 149.2 | 142 |
| M1141 | 149.2 – 161.9 | 155 |
| M1142 | 161.9 – 174.6 | 168 |
| M1143 | 174.6 – 182.6 | 178 |
| M1144 | 182.6 – 190.5 | 186 |
| M1145 | 190.5 – 203.2 | 195 |
| M1146 | 203.2 – 212.7 | 206 |
| M1147 | 212.7 – 225.4 | 218 |
| M1148 | 225.4 – 238.1 | 232 |
| M1149 | 238.1 – 250.8 | 244 |
| M1150 | 250.8 – 263.5 | 257 |
| M1151 | 263.5 – 276.2 | 269 |
| M1152 | 275.2 – 288.9 | 282 |
| M1153 | 288.9 – 301.6 | 295 |
| M1154 | 301.6 – 314.3 | 308 |
| M1155 | 314.3 – 327.0 | 320 |
